• 16" x 6.5" aluminum wheels
• P225/65R16 all-season BSW tires
• Yokohama tires
• Compact spare tire
• Black side rails w/crossbars
• Body-color fascias
• Rear scuff pad
• Front air dam
• Body-color bodyside moldings
• Belt moldings
• Black grille
• Halogen headlamps
• Headlamp time-delay off
• Fold-away heated pwr mirrors
• Sunscreen glass
• Variable intermittent windshield wipers
• Rear window wiper/washer
• Black license plate brow
• Body-color door handles

• Media center 130 CD/MP3 player -inc: AM/FM stereo
• SIRIUS radio -inc: 1-year service
• (6) speakers
• Fixed long mast antenna
• Audio input for mobile devices
• SIRIUS satellite radio -inc: 1-year SIRIUS radio service *N/A in HI or PR*

• 2nd row fold-in-floor bucket seats
• Front cloth low-back bucket seats
• 3rd row Stow'n Go tailgate seats
• Stain repel seat fabric
• Floor console w/cupholder
• Carpet flooring
• Easy clean floor mats
• Black sill applique
• Leather-wrapped steering wheel
• Tilt steering wheel
• Steering wheel mounted audio controls
• Instrument panel
• White face instrument cluster w/tachometer
• Lower instrument panel cubby bin
• Trip computer w/temp, compass
• Pwr windows w/front 1-touch feature -inc: 2nd row pwr windows, pwr quarter vented windows
• Pwr rear quarter vented windows
• 2nd row pwr windows
• Pwr locks
• Keyless entry w/immobilizer
• Tip start
• Speed control
• Air conditioning w/3-zone temp control
• Rear air conditioning w/heater
• Rear window defroster
• Dual glove boxes
• 12V aux pwr outlet
• 12V DC front & rear pwr outlets
• Driver door protection block
• Deluxe door trim panel
• Driver door sill storage bin
• Overhead console
• Observation mirror
• Driver side sun visor w/mirror
• Passenger side sun visor w/mirror
• Assist handles
• Front courtesy/map lamps
• Rear dome lamp
• Illuminated entry
• Liftgate flood lamp
• Leather-wrapped shift knob
• Rear seatback grocery bag hooks
• LH rear quarter storage bin

• 4-wheel anti-lock brakes
• Brake assist
• Brake/park interlock
• Electronic stability control
• Advanced multi-stage front air bags
• Side curtain air bags for all rows
• LATCH ready child seat anchor system
• Rear door child safety locks
• Tire pressure monitor
• Tire pressure sensor testing
• Dual note electric horn

3.8L OHV V6 ENGINE

• (STD)

• Vehicle
• EPA Classification: 2WD Minivans
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Base Curb Weight (lbs): 4321
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Twist-beam axle
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.0 x 0.5
• Tires
• Front Tire Order Code: TUG
• Rear Tire Order Code: TUG
• Spare Tire Order Code: TBK
• Front Tire Size: P225/65R16
• Rear Tire Size: P225/65R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): 3.14
• Turning Diameter - Curb to Curb (ft): 39.1
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.0
• Exterior Dimensions
• Wheelbase (in): 121.2
• Length, Overall (in): 202.5
• Width, Max w/o mirrors (in): 76.9
• Height, Overall (in): 68.9
• Track Width, Front (in): 65.5
• Track Width, Rear (in): 64.8
• Min Ground Clearance (in): 6.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 24.4
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.0
• Cargo Box (Area) Height (in): 48.6
• Cargo Volume to Seat 1 (ft³): 143.8
• Cargo Volume to Seat 2 (ft³): 82.7
• Cargo Volume to Seat 3 (ft³): 32.3
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 163.5
• Front Head Room (in): 39.8
• Front Leg Room (in): 40.6
• Front Shoulder Room (in): 63.0
• Front Hip Room (in): 57.0
• Second Head Room (in): 39.2
• Second Leg Room (in): 36.4
• Second Shoulder Room (in): 64.7
• Second Hip Room (in): 64.8
• Third Head Room (in): 37.9
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 62.0
• Third Hip Room (in): 48.7
• Summary

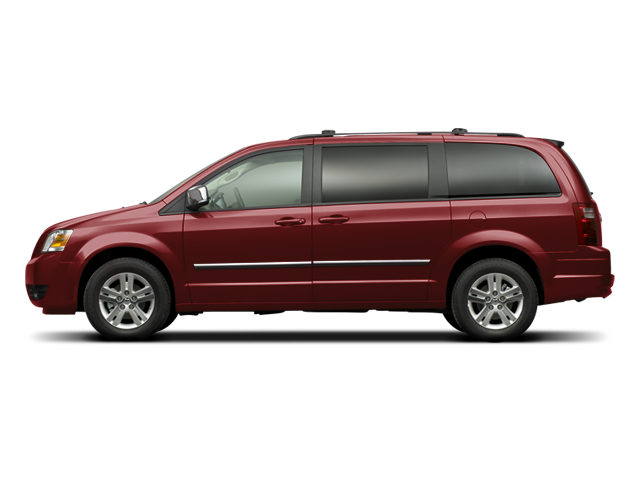

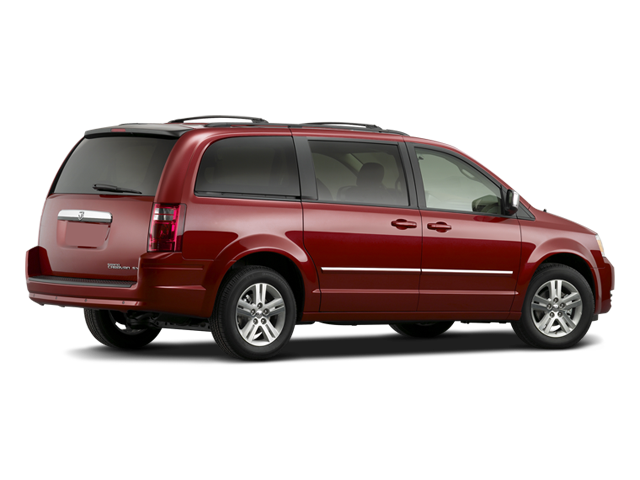

• Vehicle Name: Dodge Grand Caravan
• Body Style: 4 Door Ext WB
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
